CNC busbar bending machine busbar bender

Model: CNC-50Z-PS

Power: 6Kw

Delivery time: 7-25days


Certification: ISO9001:2000/CE

Payment: T/T, L/C

Brand: JPSK

Place of Origin: Jinan, China


Product Introduction

CNC-50Z-PS CNC servo busbar bending machine is an equipment used for bending copper, aluminum busbars. The machine uses high-power servo motor as the driving force,PLC control unit. High processing efficiency, accurate positioning, and the automation level of the whole machine is at the leading level in the industry. It is widely used in high and low voltage switchgear, transformer manufacturing, box substation, busway and other industries.

Main Characters

(1).Mechanical structure

The machine is design as the open bending structure, the working platform is whole welded. Through the vibration aging treatment and heat treatment, remove the internal stress, it can effectively guarantee its stiffness and strength. The main drive part and the work platform is organically connected. It is very easy to take the material in and out and the observe view is very good.

(2).Main drive section

The main drive part of the machine adopts the popular servo drive form, with novel structure, abundant power and easy operation.No oil pollution for the work area, noise reduction, small occupation area, environmental protection and practical. The output force can reach 350KN, the servo drive easily controllable, and precisely and accurately linked with the PLC. It is enough to realize the functions of fast forward, fast retreat and slow inching, which can improve the processing efficiency and ensure the accuracy of bending, which is unmatched by hydraulic drive machines. Equipped with high-power, large inertia servo motor, optional bending die to achieve horizontal bending, vertical bending, twisting and other processing functions.

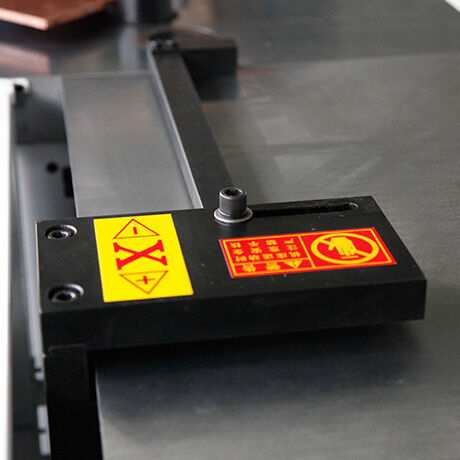

(3).X-Axis block gauge

The block gauge of the machine adopts modular design.According to customer needs, we can select the required block gauge length. The block gauge is driven by servo motor, high precision Taiwan HIWIN ball screw and linear guide rail, The operation is stable and high positioning accuracy. X-axis maximum stroke 1600mm (can be customized according to customer requirements).

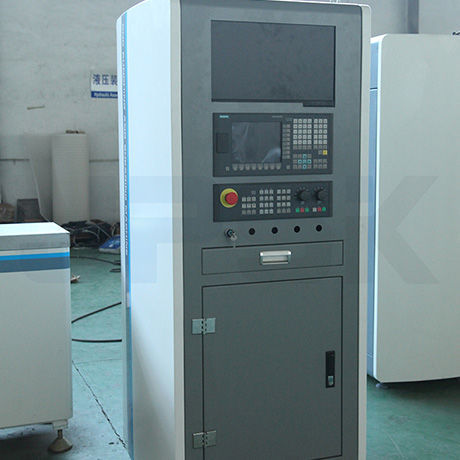

(4).Electrical parts

Taiwan Panel Master as the touch screen. The bending program is developed and copy righted by our company.The interface is clear and simple for operation, very easy to learn for non professional workers.

Technical Parameters

Nominal force350kn
Max. bending stroke220mm
Length of block gauge1600mm
Precision of block gauge±0.1 (1000mm)
Bending precision±0.2°
Repeat location precision±0.1mm
Max. bending width200mm
Max. bending thickness15mm
Max. speed of block gauge (X-axis)15m/min
Speed of bendingFast 5 m/min, slow 1.25m/min
Y-axis servo motor power5kw
X-axis servo motor power0.75kw
Total motor power6.0kw
Out side dimension3500×1800mm
Total weight2200kg

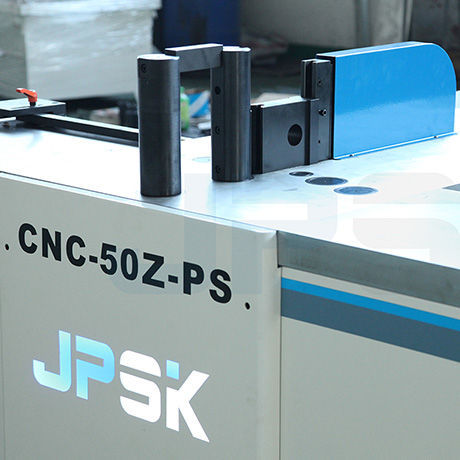

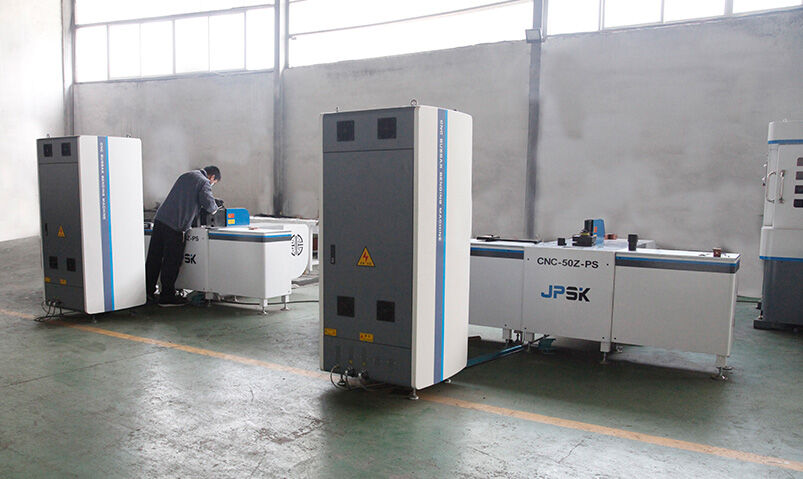

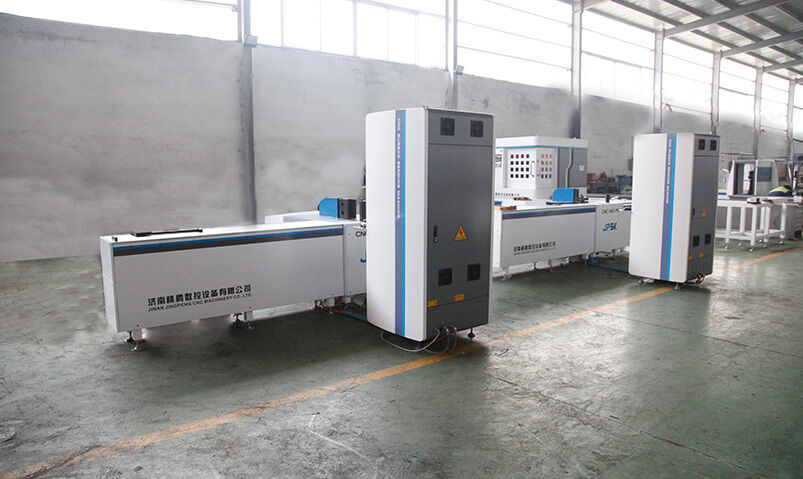

Product Details

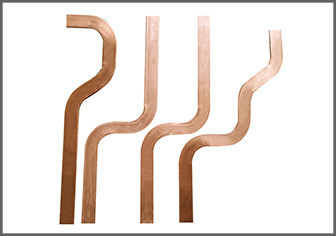

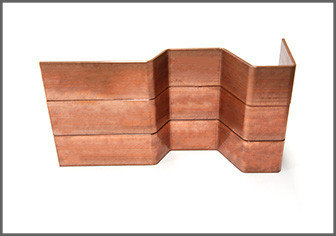

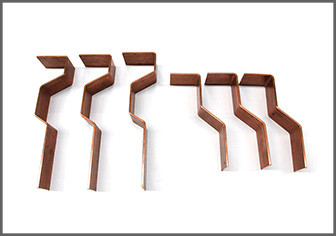

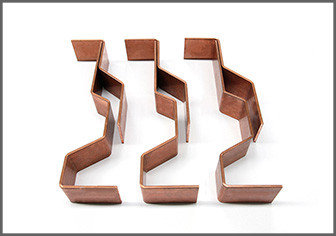

Demonstration of Processing Samples
