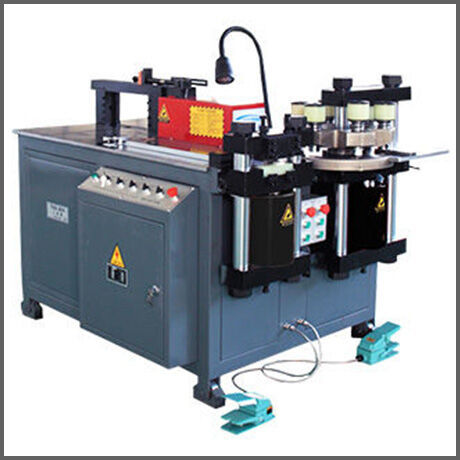

3 in 1 busbar processing machine

Updated:2020-12-22

Model: JPMX-303CM / JPMX-303DM

Power: CM: 1×4Kw DM: 3×4Kw

Delivery time: 7-25days

MOQ: 1 PCS

Certification: ISO9001:2000/CE

Payment: T/T, L/C

Brand: JPSK

Place of Origin: Jinan, China

Inquiry

Product Introduction

ONE MACHINE THREE FUNCTIONS,Environmentally friendly Energy-efficient with Multi-functions.No need to occupy large space, suitable for workshop and busbar processing plant.The machine voltage can be customized according to the power system where you are located.

Cutting/Punching/Bending

One machine three functions ,meet different needs.

Cutting Unit

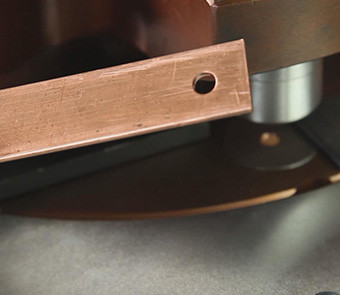

Punching Unit

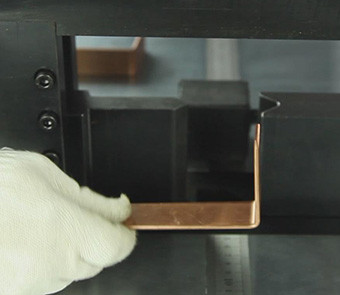

Bending Unit

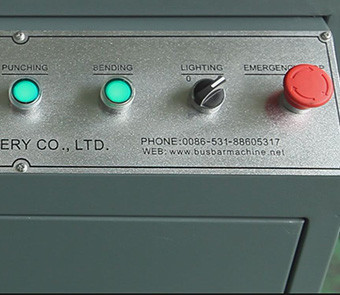

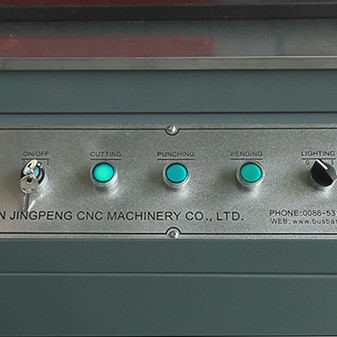

Function switching unit

Product data and details display

High-quality raw materials, carefully crafted, and the details show extraordinary quality.

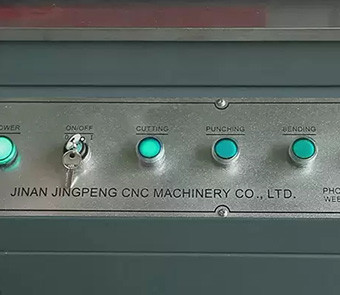

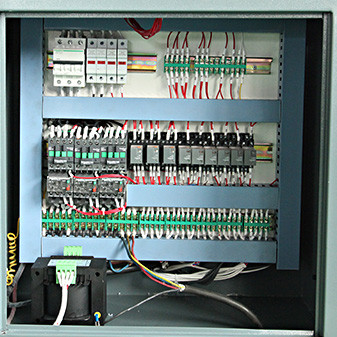

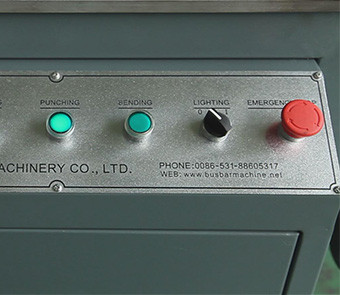

Precision electronic control system

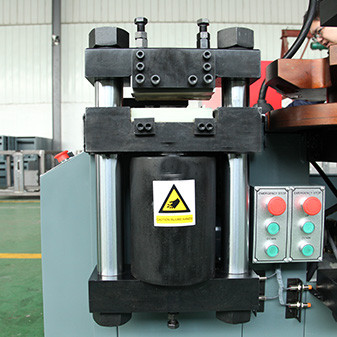

Powerful energy, safe and reliable

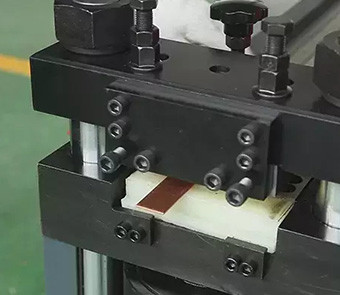

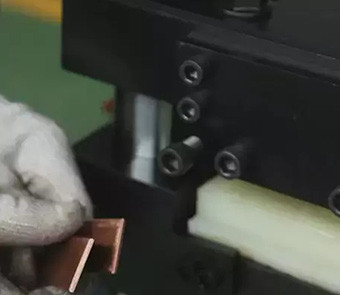

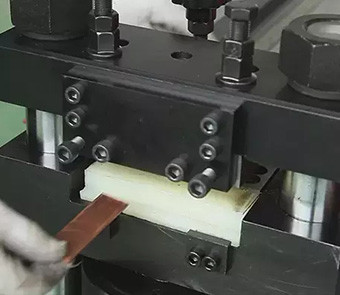

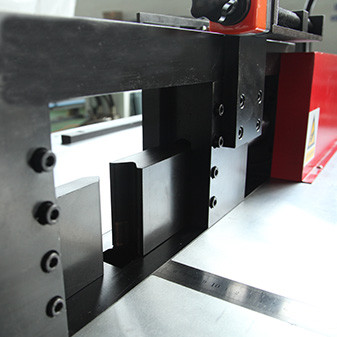

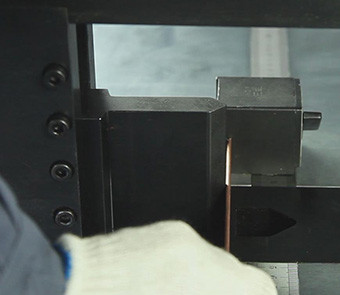

Cutting unit

Precise positioning Easy to cut

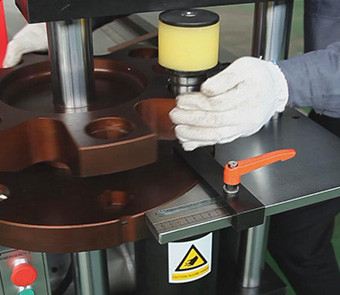

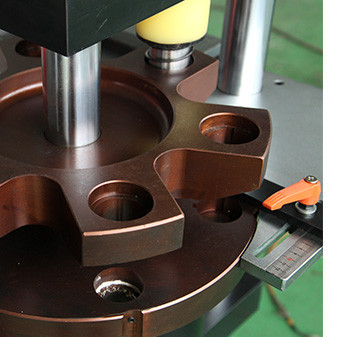

Punching unit

Turret punching die,Easy replacement

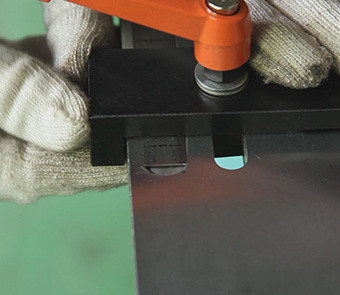

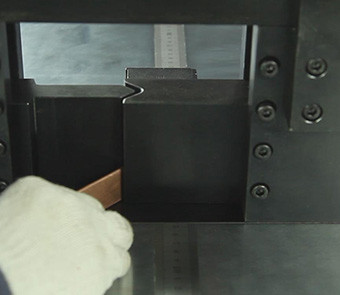

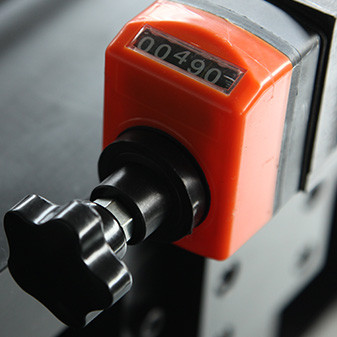

Bending positioning

Angle reference representation,Balanced bendin

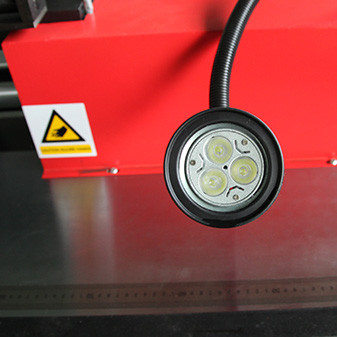

Auxiliary work light

LED high brightness lights

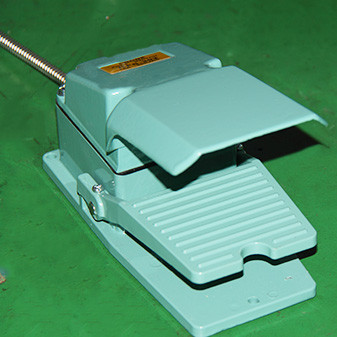

Foot switch control

Simple and easy to use

Technical Parameter

Items	Model
Items	JPMX-303DM	JPMX-303CM
Nominal force (kn)	300	300
Punching dia. range (mm)	ф4.3～ф25	ф4.3～ф25
Max.thickness (mm)	12	12
Max.width (mm)	160	160
Max.shearing thickness (mm)	12	12
Max.shearing width (mm)	160	160
Max.horizontal bending width (mm)	160	160
Max.horizontal bending thickness (mm)	12	12
Max.vertical bending size (mm)	10×100	10×100
Power (kw)	3×4KW	1×4KW
Table size (mm)	1650×1050	1650×1050
Outside dimension (mm)	1720×1220×1220	1720×1220×1220
Container size (mm)	1800×1300×1430	1800×1300×1430
Total weight (kg)	1320KG	1220KG
